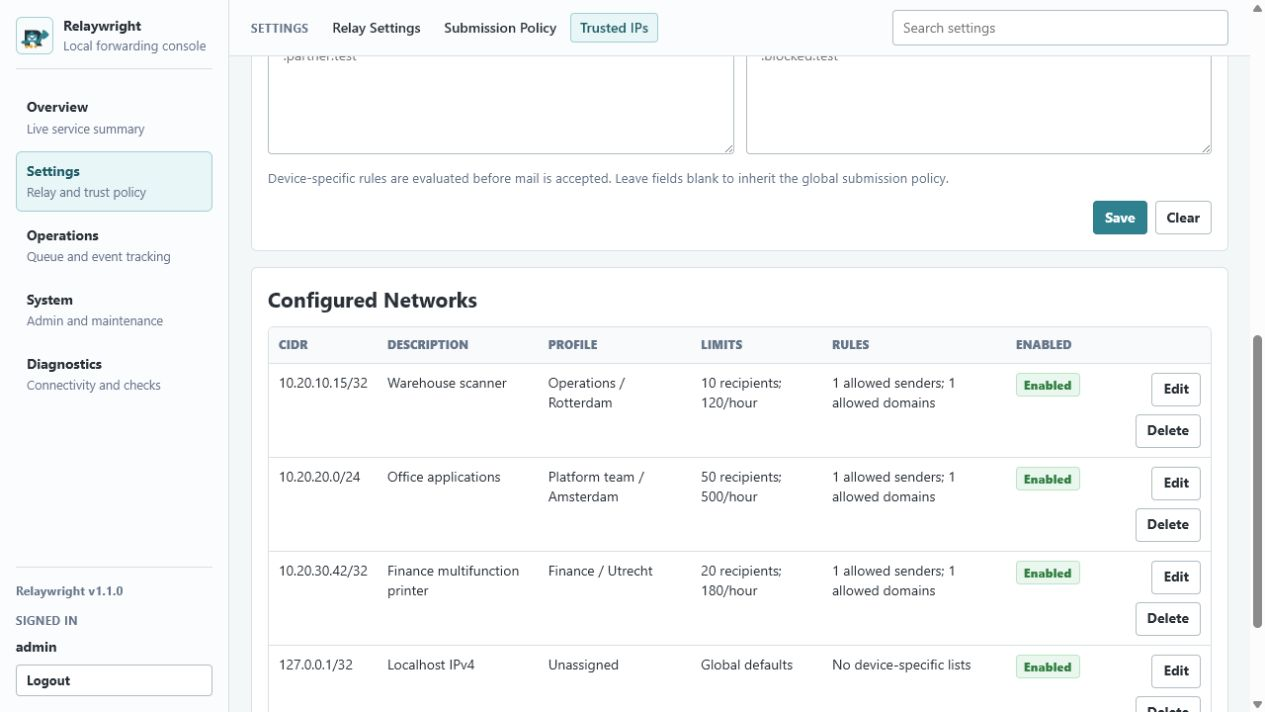

Trusted device intake
Allow SMTP submission by IP or CIDR, with owner, location, sender, recipient, size, and rate policy summaries.
Free self-hosted SMTP relay gateway
Relaywright
Run a narrow, auditable relay for printers, scanners, line-of-business apps, and internal systems that need to send mail through one controlled upstream smart host.
Operational control
Built for known devices, not open relay exposure
Relaywright focuses on the quiet work system engineers need from an internal SMTP relay: accept only what should be accepted, keep accepted messages durable, and make delivery state visible.

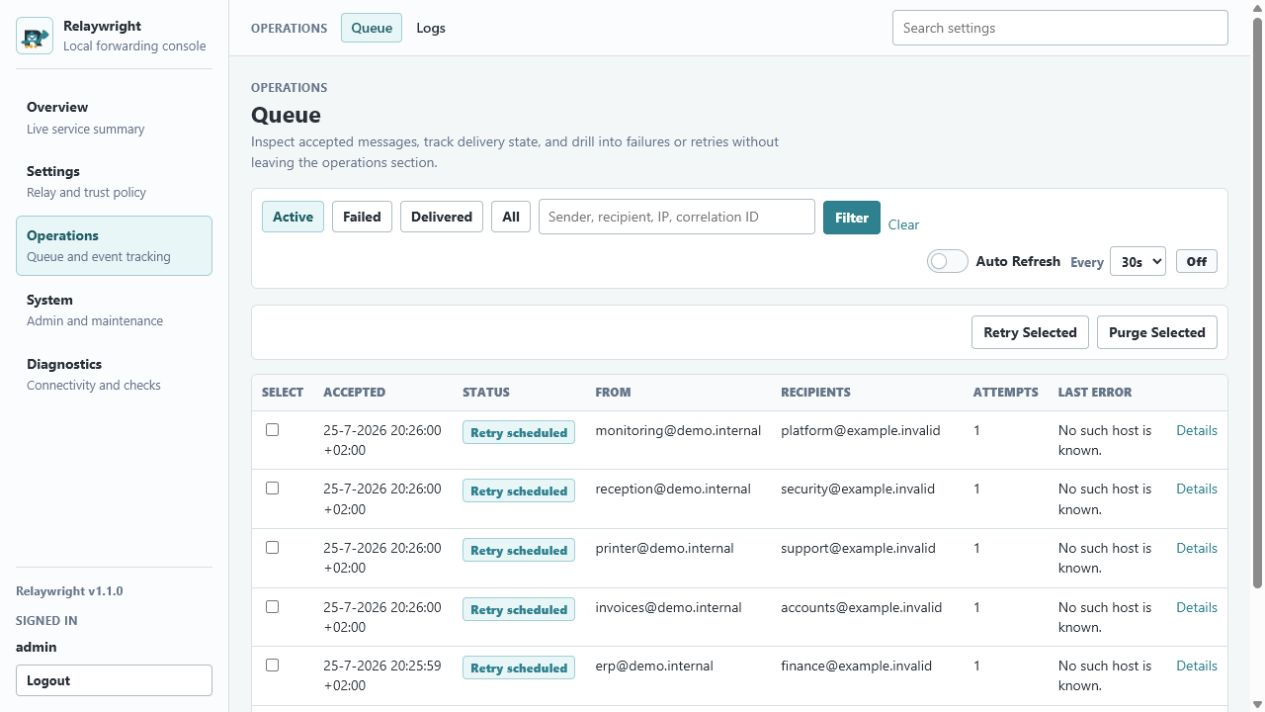

Durable queue
Accepted DATA is written to disk before SMTP success. Operators can inspect age, attempts, retry schedule, and failure category.
Upstream delivery
Relay to one upstream smart host with TLS settings, optional basic authentication, or Microsoft OAuth client credentials.
Diagnostics

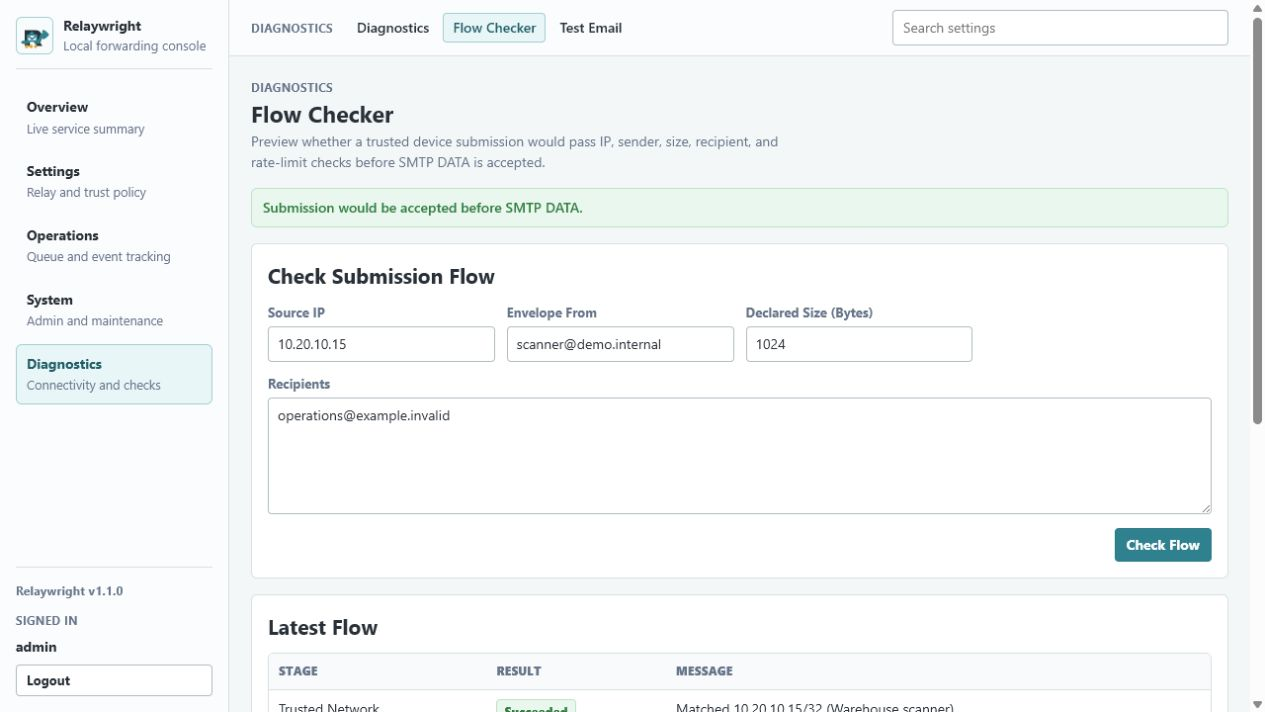

Run connectivity checks, submission-flow previews, and test email diagnostics before pointing devices at the relay.

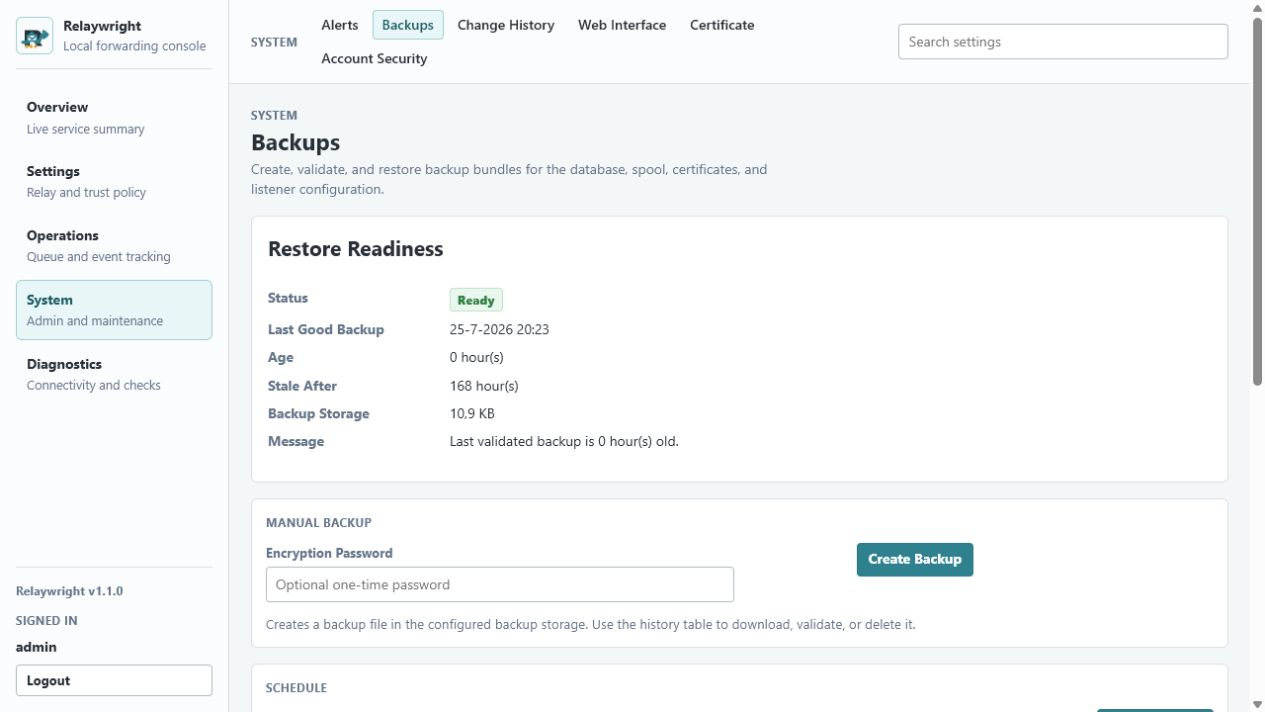

Backups and restore staging
Create SQLite backups, validate restore readiness, review retention, and stage restores with clear restart impact.
Security visibility
Review admin sign-in events, current session details, suspicious login warnings, HTTPS certificate status, and account recovery guidance.
First 15 minutes
Install, prove, then point devices at it
Use the admin UI to finish configuration before any production device starts sending through Relaywright.
-
1
Install the service
Use the Windows installer or Linux install script for
v1.1.0. -
2
Create the first admin
Open the local admin URL and complete first-run setup.
-
3
Configure upstream SMTP
Set the smart host, TLS behavior, timeout, and authentication mode.
-
4
Add trusted devices
Allow only the source IPs or CIDRs that should submit mail.
-
5
Run diagnostics
Check connectivity, preview submission policy, and send a test email.
-
6
Switch traffic deliberately
Point one device at the relay, confirm queue and delivery history, then expand.

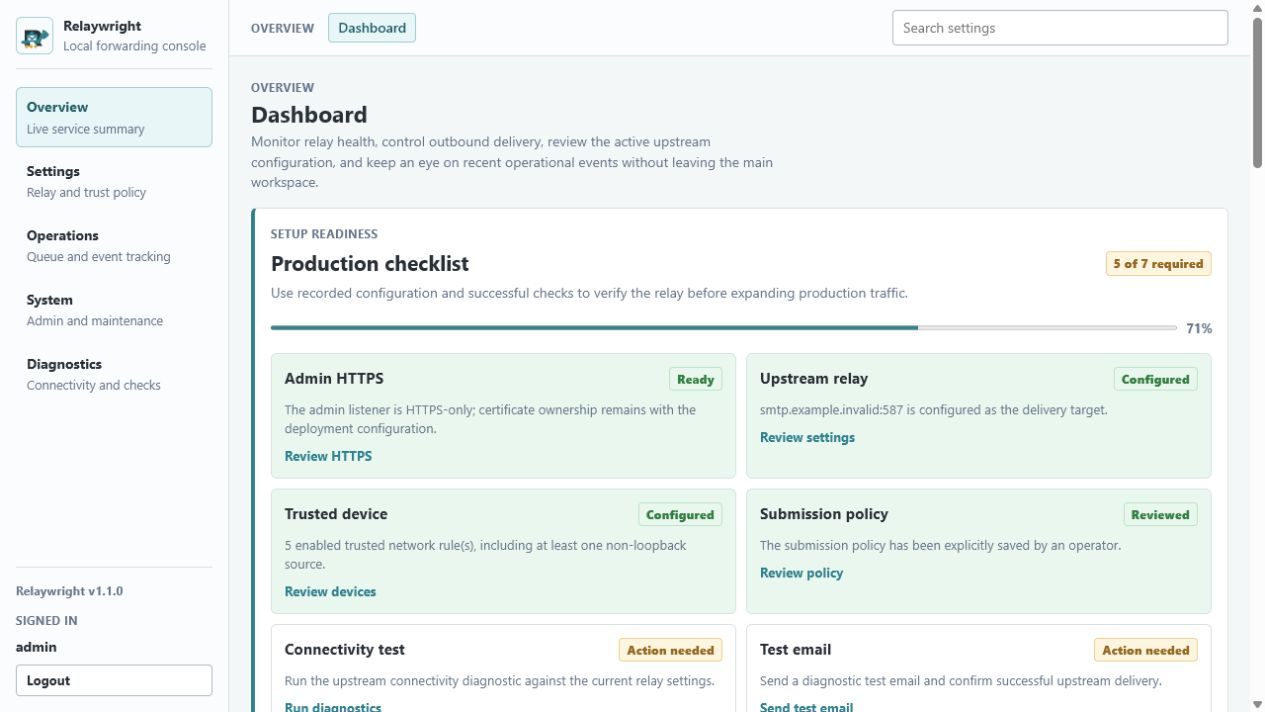

Admin console
Operator views for day-two work
Security model
Narrow intake and auditable operations
No open relay posture
SMTP submission is constrained by trusted IP or CIDR rules before message content is accepted.
Durability before success
Accepted DATA is durably spooled and queue metadata is saved before clients receive SMTP success.
Protected admin surface
Production installs are HTTPS-first, with admin HTTP disabled unless deliberately enabled.
Secret-aware operations
Relay secrets are protected at rest, and diagnostics avoid storing message bodies, passwords, tokens, or private SMTP transcripts.
Validated release line
Windows and Linux packages
Release builds are self-contained. The target machine does not need a separate .NET runtime.
Windows x64
Installer and service validation
Linux x64
systemd install and update validation
Linux ARM64
Clean-install validation
SMTP smoke
Trusted and untrusted submission checks
Install
Download Relaywright v1.1.0
Use the release artifacts and verify them with SHA256SUMS.txt before installing on production hosts. The latest release page always points at the current stable build.
Windows
Download the Windows x64 installer and run it as Administrator. The zip package is available for manual inspection or advanced recovery.
Linux
The installer selects x64, ARM64, or ARMv7 packages automatically.
curl -fsSL https://github.com/dotwebster-development/Relaywright/releases/download/v1.1.0/install-relaywright.sh \
-o install-relaywright.sh
sudo bash install-relaywright.sh --repo dotwebster-development/Relaywright --version 1.1.0To track the current stable version after reviewing release notes, use --repo dotwebster-development/Relaywright --version latest.
